Product Info
SH35

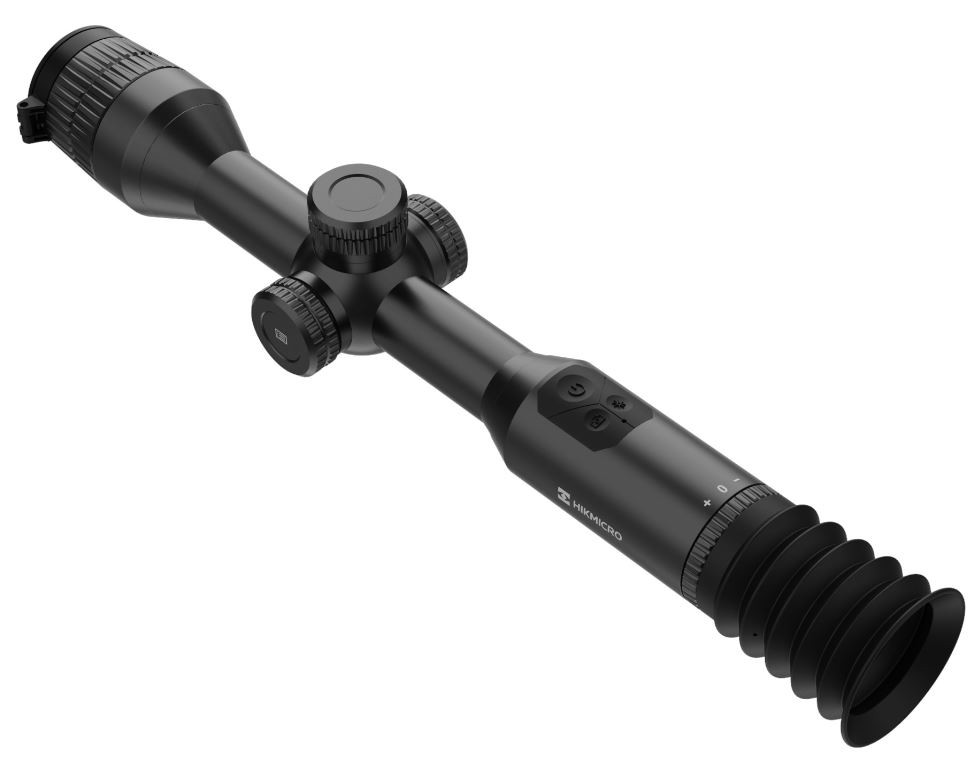

HIKMICRO THERMAL SCOPE STELLAR SH35 HM-TR33-35XG/W-SH35
1. Excellent Thermal Sensitivity
With an impressive thermal sensitivity of less than 35mK (NETD<35mK), The Stellar series ensures flawless detail recognition even in the most challenging weather conditions.
2. High-Definition Thermal Sensor:
Immerse yourself in the world of superior thermal imaging. Equipped with a cutting-edge 12µm thermal sensor and offering resolutions of up to 640×512 pixels, our technology ensures exceptional temperature resolution. Ensuring thermal images that are sharp, richly contrasted, and highly accurate.
3. Super Large Aperture Lens
The HIKMICRO Stellar series features a high-performance aspheric germanium lens with a super large aperture of f/1.0. The larger aperture allows for greater infrared radiation capture, resulting in exceptionally clear images.
4. Ultra Long Battery Life
With two internal batteries and a CR123 available as a backup the Stellar features an exceptionally long battery life of up to 15 hours, ensuring that you don’t miss a single moment. In addition the Stellar series features a USB-C port on the right side of the unit to accept USB power to charge or run the unit featuring Quick Charge 3.0, further extending the battery life if desired.
5. Traditional Tube Design for Exceptional Backwards Compatibility:
For shooters that prefer the traditional form factor of a tube scope the Stellar features a 30mm tube design allowing it to be mounted on any rifle that can utilise a scope.
6. Intuitive operation and ease-of-use:
Featuring a intuitive and easy to use user interface coupled with a scroll wheel on the left side of the unit the Stellar is exceptionally user friendly and allows the shooter to more quickly operate the scope so you don’t miss any opportunities.
7. Robust Construction:
The Stellar features a sturdy housing that is resistant to sweat, rain, mist, and dew. The objective lens incorporates SDLC coating technology, preventing scratches. With an IP67 waterproof rating, the device can be submerged in up to 1 meter of water for 30 minutes, making it perfect for prolonged use in rugged environments.
8. Long Detection Range and Large Field of View:
The Stellar series offers a remarkable detection range of up to 2600m or an expansive field of view up to 12.52 degrees.
9. Powerful Digital Zoom:
With an impressive 8x digital zoom capability, our product ensures reliable identification and recognition of objects at any distance. No details remain hidden, even at extended ranges.
10. Multiple Reticle Profiles:
Featuring 5 different reticle profiles with 5 different zeros within those, 10 different reticle options, and a variety of reticle colours the Stellar ensures you have all the tools you need to stay on target, whether that’s moving the scope between different guns or for different ammunition types the flexibility of the Stellar has unmatched versatility.
11. Recoil-Activated Video and Audio Recording
With recoil activated video and audio recording the Stellar can capture every shot with accuracy for later review or sharing, additionally the Stellar features an adjustable pre-record function so you never miss a moment.
SPECIFICATIONS SH35
Sensor 384x288px @ 12µm
Objective Lens (Focal Length) 35 mm
Detection Distance 1800 m
SENSOR
Resolution, pixels 384×288
Pixel pitch, µm 12µm
Frame rate, Hz 50 Hz
NETD <35mK
LENS SPECIFICATIONS
Objective lens F/1.0
Magnification (Optical) 2.7x
Magnification (Digital) 1x, 2x, 4x, 8x
Field of view 7.53° x 5.65°
DISPLAY
Type 10mm, OLED
Resolution, Pixels 1024 x 768
Colour Palettes Black Hot, White Hot, Red Hot, Fusion
VIDEO
Storage 64 GB
Image Capture Yes
Video Record Yes
Recoil Activated Video Yes
ADDITIONAL FEATURES
Image Pro Mode Yes
Hot Tracking Yes
Wi-Fi hot spot Yes
HIKMICRO Sight App Support Yes
One-Shot Zero Yes
ENVIRONMENTAL
Rated Protection IP67
Operating temperature range -30 °C to 55 °C
WEIGHT & SIZE
Dimensions, mm 407mm x 78.1mm x 75.9mm
Weight 890 g
POWER SUPPLY
Battery type 2x Internal Li-Ion Batteries w/CR123 Backup
Operating time on battery
(WiFi & Hot tracking disabled) 15 Hours
Charging interface USB-C Cable (Supplied)
Warranty Period
Main Unit 3 Years, 10 Years for Sensor
