#HS510C

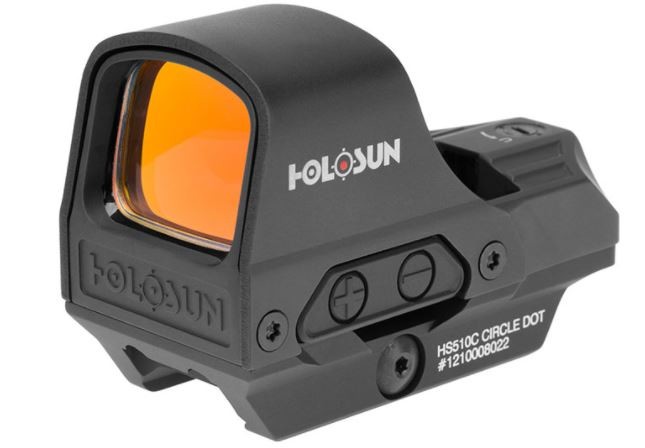

SCOPE HOLOSUN RED DOT MODEL HS510C 2 MOA OR 65 MOA RING OPEN REFLEX CIRCLE DOT SOLAR. #HS510C
Holosun Model HS510C; 2 MOA Dot or 65 MOA Ring Open Reflex Circle Dot Solar Power Holographic Red Dot Sight
The HS510C Open Reflex Circle Dot Sight has an open frame for a wide sight picture. It is powered by solar cell under normal usage, and a back-up battery to supplement power requirements in low light conditions. The reticle can be switched at the push of a button. Better still, the same LED projects both reticles, so no re-zeroing is necessary.
FEATURES
– Reticle size changes based on the distance between your eyes and objective lens
– Parallax free optical design, with unlimited eye relief
– Minimized obstruction of vision with push-button controls and a streamlined housing design
– Solar cell and high capacity battery provide dual power supplies
– 32mm×24mm open lens
– Titanium-alloyed, shock resistant protective hood, CNC machined with T6061-T6 housing
– Quick release mount
– Adaptable to Picatinny and Weaver rails
The size of LED Circle is 65MOA; the size of dot is 2 MOA. The reticle can be switched between circle dot and single dot.
OPTICAL DATA
Light Source: LED
Reticle: 2MOA Dot & 65MOA Ring
Parallax Free: Yes
Unlimited Eye Relief: Yes
Magnification: 1x
Multi-Coatings: Yes
Integrated Laser: No
ELECTRONIC DATA
Battery Type: CR2032
Battery Life: Up to 50,000 Hours
Brightness Setting: 10 Daylight & 2 NV Compatible
MECHANICAL DATA
Housing Material: 6061 Aluminum with Titanium Hood
Surface Finish: MAO
Housing Colour: Black
Adjustment per: Click 0.5 MOA
W&E Travel Range: ±50 MOA
Storage Temperature: -40‚Ñâ – 158‚Ñâ
Working Temperature: -22‚Ñâ – 140‚Ñâ
Submersion: IP67
Vibration: Up to 1000G
PHYSICAL DATA
Window Size: 0.91in x 1.2in
Dimension: (in) 3.3 x 1.6 x 1.8
Weight: (oz) 8.3
Central Height: (in) 1.41
